Single Geophone 4.5 Hz Vertical In Land Case Without Connector

Brand Name : EGL

Model Number : EG-4.5-II

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal, Credit card

Supply Ability : 1000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Frequency : 4.5Hz

Sensitivity : 28.8 V/m/s

Case : Waterproof Land Case

Connector : without connector

Coil Resistance : 375 ohm

HS Code : 9015900090

Contact Now

Product Description

Geophone 4.5Hz Vertical in land case without connector

The geophone 4.5hz (EG-4.5-II) is a conventional type of moving coil geophone with small error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths. It is equivalent to SM-6 B coil 4.5hz geophone. Widely used in industrial vibration-monitoring systems. Ideal choice for shear-wave horizontal elements.

Single geophone 4.5Hz vertical in waterproof land case with spike 75mm, with 1m leader cable, terminated without connector.

The lead cable length can be customized.

Single Geophone 4.5 Hz Vertical In Land Case Without Connector

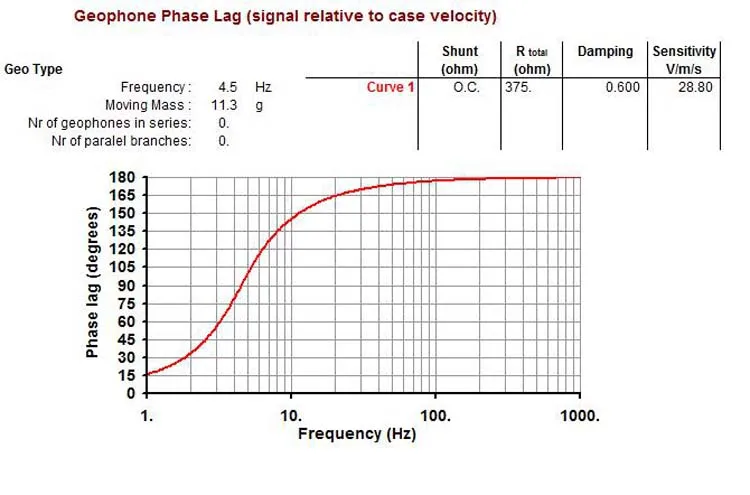

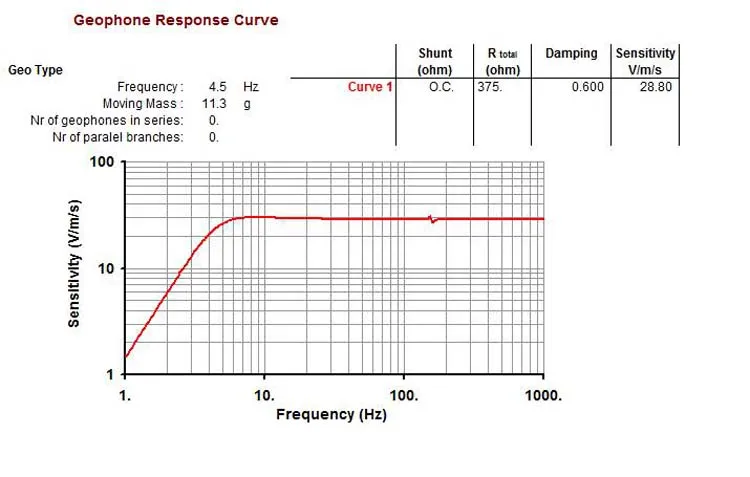

Geophone Response Curve and Phase Lag of Geophone 4.5Hz

Specification

All parameters specified here in are rated at a temperature 20℃±2℃ .

Type	EG-4.5-II
Natural Frequency ( Hz )	4.5±10%
Coil resistance(Ω)	375±5%
Damping	0.6±5%
Open circuit intrinsic voltage sensitivity ( v/m/s )	28.8 v/m/s ±5%
Harmonic distortion ( % )	≦0.2%
Typical Spurious Frequency (Hz )	≧150Hz
Moving Mass ( g )	11.3g
Typical case to coil motion p-p ( mm )	4mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	36mm
Diameter ( mm )	25.4mm
Weight ( g )	86g
Warranty Period	3years
